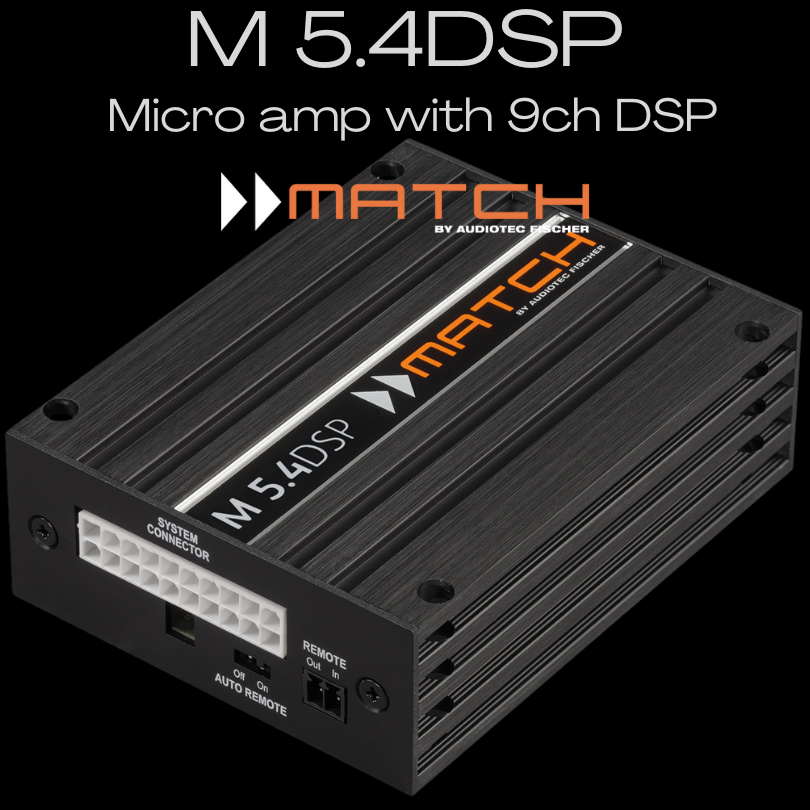

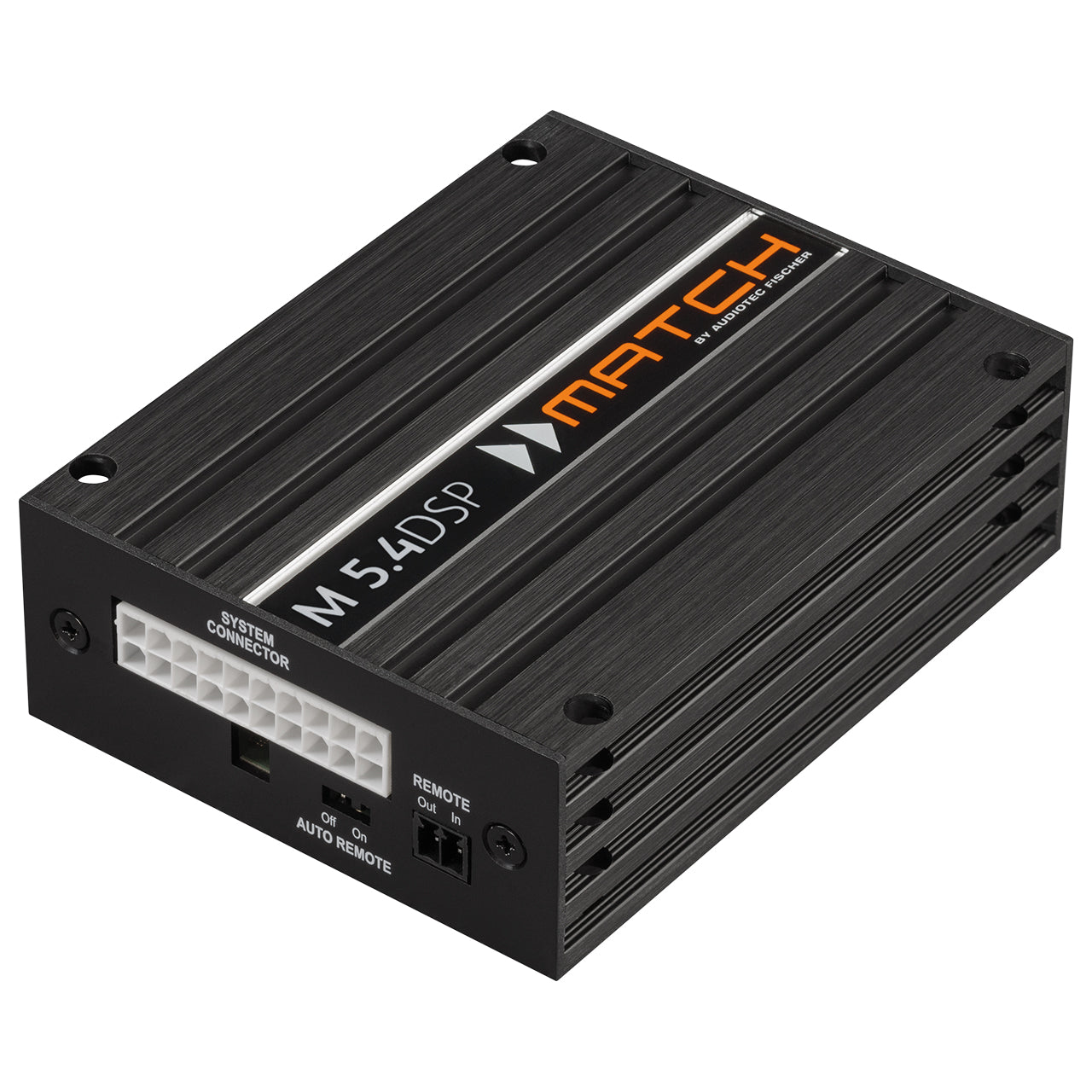

Match M 5.4DSP

5 channel amp, 9 channel DSP

Ultra efficient 5-channel amplifier with 4 line outputs and 9-channel DSP
Minimum dimensions for stealth installation concepts
Two power options: “HighPower” mode for maximum performance and “MidPower” mode with reduced output power and lower power consumption for Plug & Play applications
Plug & Play installations without separate power supply in “MidPower” mode
Extremely powerful “fixed point” audio DSP with 64 Bit resolution
ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:

ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.

Optical input in SPDIF format with sampling rates between 12 and 96 kHz
Smart highlevel input with ADEP.3 circuit and Auto Turn-On function
VCP (Virtual Channel Processing) allows even more flexible configuration for highly complex sound systems
Auto Remote switch
Start-Stop capability down to 6 Volts supply voltage
Freely configurable 4-channel line output for the connection of additional amplifiers
Subwoofer connection cable for MATCH Plug & Play and conventional subwoofers included in delivery
SCP (Smart Control Port) for optional accessory like WIFI CONTROL, DIRECTOR, CONDUCTOR & Co.

Output power RMS
- @ 4 Ohms	HighPower mode: 4 x 60 Watts MidPower mode: 4 x 35 Watts
- @ 2 Ohms	-
- @ 1 Ohm	-
- bridged @ 4 Ohms	-
- bridged @ 2 Ohms	-
- Subwoofer output @ 4 Ohms	High- and MidPower mode: 1 x 90 Watts
- Subwoofer output @ 2 Ohms	High- and MidPower mode: 1 x 160 Watts
Amplifier technology	Class GD

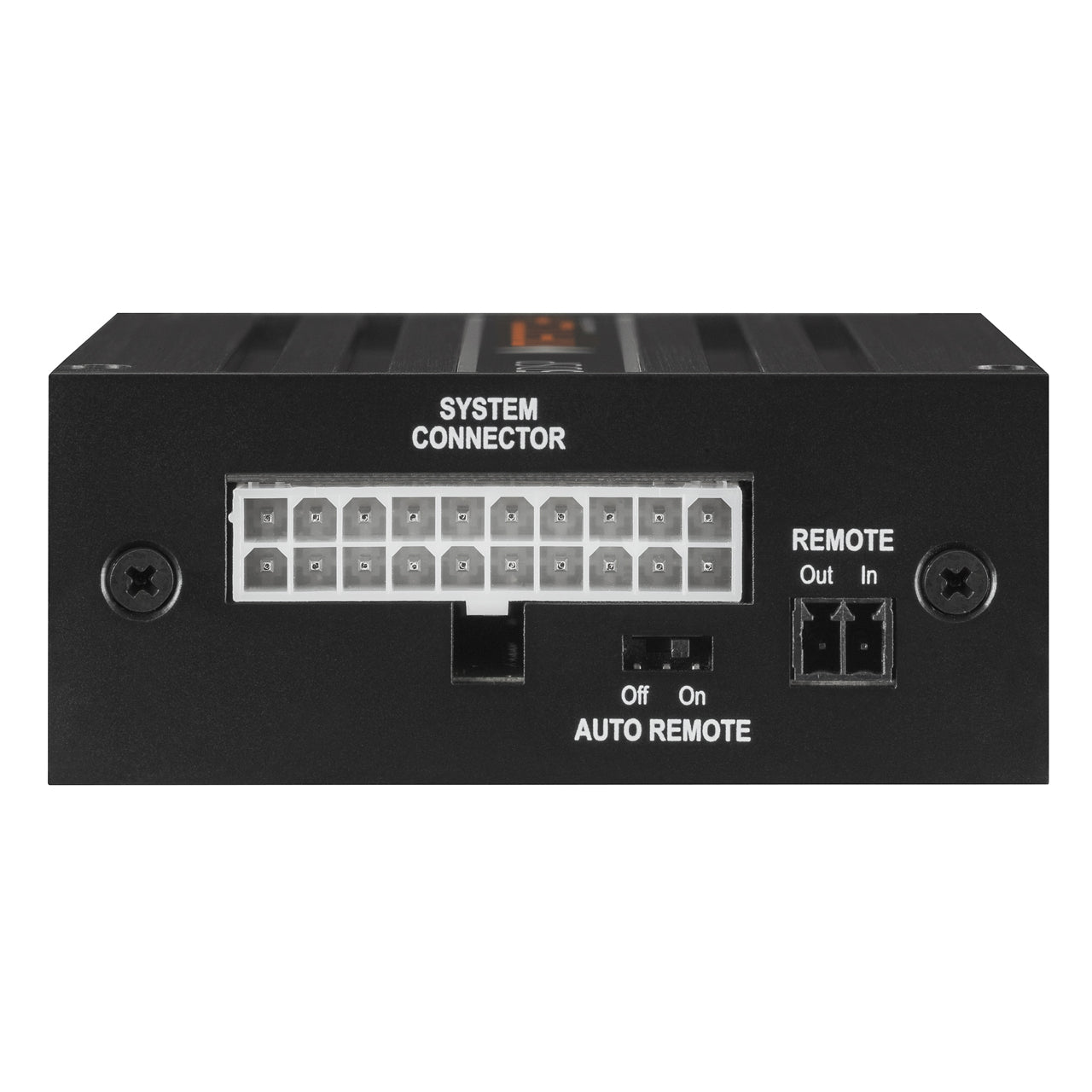

Inputs	4 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Remote in
Input sensitivity	5 - 11 Volts
Input impedance RCA / Cinch	-
Input impedance highlevel	9 - 33 Ohms with ADEP.3

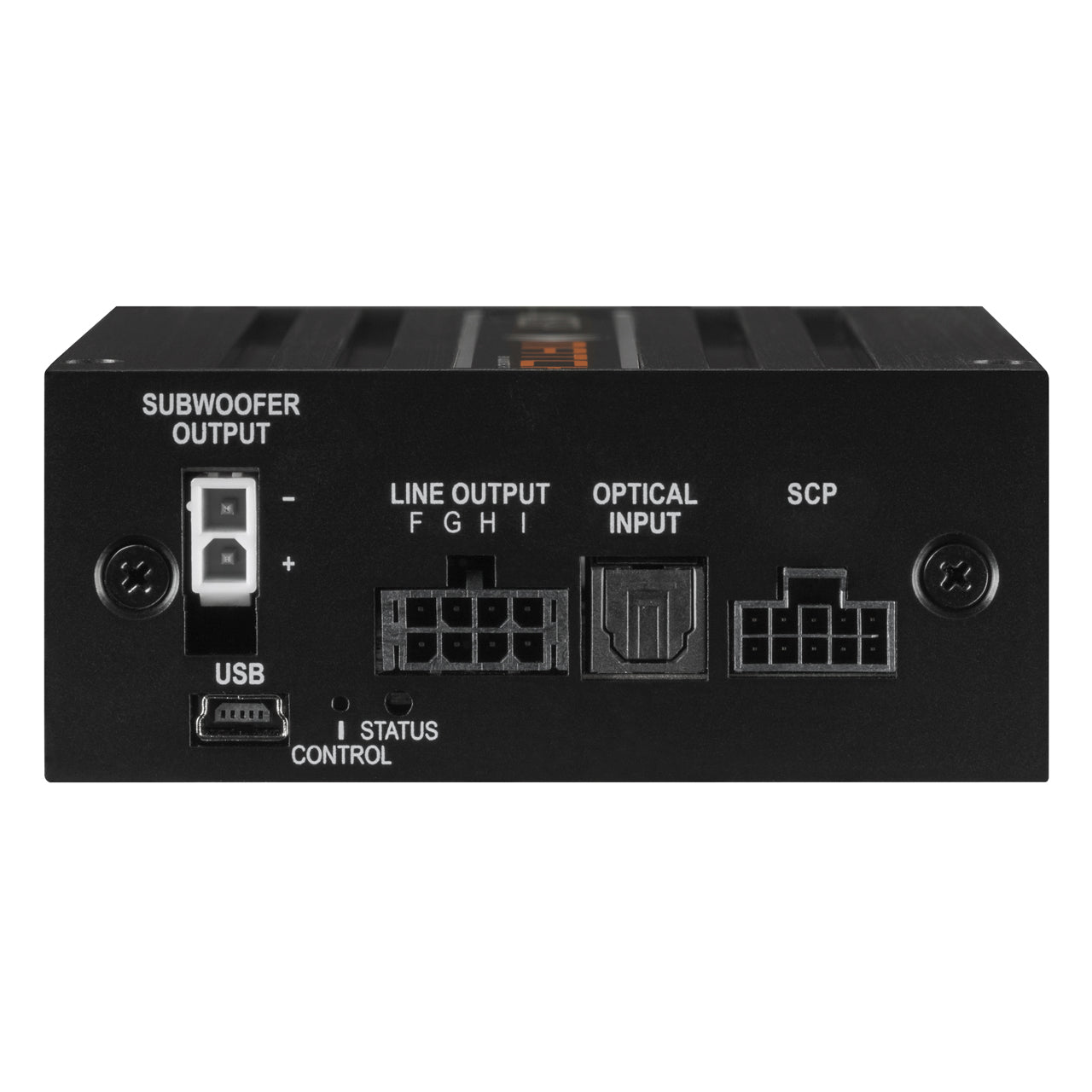

Outputs	5 x Speaker output 4 x RCA / Cinch 1 x Remote Out
Output voltage RCA / Cinch	3 Volts
Frequency response	20 Hz - 20,000 Hz
DSP resolution	64 Bit
DSP power	295 MHz (1.2 billion MAC operations/second)
Sampling rate	48 kHz
DSP type	Audio signal processor
Signal converters	A/D: BurrBrown D/A: BurrBrown
Signal-to-noise ratio digital input	> 105 dB (A-weighted)
Signal-to-noise ratio analog input	> 99 dB (A-weighted)
Distortion (THD)	< 0.03 %
Damping factor	> 50
Operating voltage	10.5 - 17 Volts (max. 5 sec. down to 6 Volts)
Power rating	DC 12 V ⎓ 40 A max.
Idle current	280 mA
Max. remote output current	500 mA
Operating temperature range	-40° C to +70° C
Fuse	1 x 30 A Maxi-fuse (APX)
Additional features	32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch, Smart Control Port, Start-Stop capability, USB
Dimensions (H x W x D)	35 x 85 x 110 mm / 1.34 x 3.35 x 4.33"
